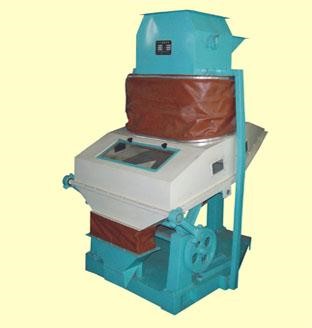

該機是玉米加工廠和酒廠、酒精廠的理想設備。本設備利用胚芽與玉米碴的比重和懸浮速度不同的物料借助向上穿過胚芽間隙的氣流作用促使胚芽與玉米碴分級，在做定向傾斜往復回轉的篩板作用下，向排碴端運動，浮于上層的玉米碴在自重作用下，向出料口端流動，從而把玉米碴從胚芽中分離出來。
This series of equipment is a kind of ideal equipment for corn processing plant, winery and alcohol plant. It urges the separation of germ and corn girt by utilizing the different specific gravity of germ and corn grit and suspension speeds, as well as the air flowing through germ gap. Corn grits move towards the discharge end under the effect of sieve plate conducting directed inclination and reciprocation. The corn grits floating on the upper layer flow towards the discharge end under the effect of self-weight, thus corn grits can be separated from germs.
特點：
Characteristics:
1、該機采用胚芽與玉米碴子比重不同的原理進行選胚，精度更加準確；
The principle that the specific gravity of germ is different from that of corn grit is adopted for germ selection, and the precision can be more accurate;
2、該機動力低，產量高；
The equipment is featured with low power and large output;
3、該機密封性能好，生產過程中無粉塵外揚；
The equipment is featured with satisfactory sealing performance, free of flying dust during production;
4、該機運行穩定，設備安全性高
It is also featured with stable operation and high safety performance
技術參數：
Technical parameters:
|
型號 Model |
產量（t/h） Output (t/h) |
動力 Power (kw) |
吸風量（m³/h） Air suction amount (m³/h) |
質量 Mass (kg) |
外形尺寸（長×寬×高）mm Boundary dimension (L × W × H) mm |
|
TSQX60 |
0.5-1.5 |
0.55 |
2800-3000 |
130 |
1500×780×1650 |
|
TSQX80 |
1.5-2.5 |
0.75 |
3200-3400 |
200 |
1600×980×1780 |
|
TSQX100 |
2.5-3.5 |
1.1 |
3800-4000 |
240 |
1600×1180×1780 |
|
TSQX125 |
3.5-4.5 |
1.1 |
4800-5100 |
300 |
1600×1450×1780 |
|
TSQX160 |
4.5-6.0 |
1.5 |
7500-7800 |
360 |
1600×1780×1780 |
