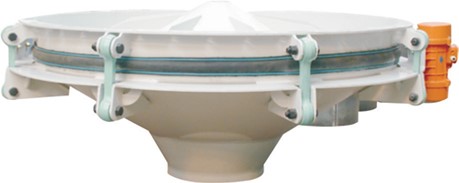

倉底振動卸料器適用于面粉、飼料、化工、醫藥等類似面粉的粉狀物料的倉底卸料。它以振動電機為振源，驅動卸料斗高頻振動，卸料斗的中心部位設有一圓錐形的卸料盤，促使倉內物料緩慢而均勻地從出口流出，并有防止倉內物料結拱的作用，是一種高效的倉底卸料設備。
Vibrating bin bottom unloader is applicable for bin bottom unloading of flour, feed, chemical engineering, medicine and other powdery materials. It takes vibration motor as the vibration source to drive discharge hopper to vibrate with high frequency. A conical discharge plate is set in the center of the discharge hopper to help the materials in the bin to flow out from the outlet slowly and uniformly; besides, it can prevent the materials in the bin from arching; therefore, the equipment is a kind of high-efficiency bin bottom unloader.
特點：
Characteristics:
1、電子激光下料，下料準確外形好看；
Electron laser can guarantee accurate blanking and attractive appearance;
2、采用振動電機，使用壽命長；
Vibration motor is adopted, and it can have a long service life;
3、易拆卸，維修使用方便
It is easy to disassemble, repair and operate the equipment
技術參數：
Technical parameters:
|
型號 Model |
電機轉速（r/min） Motor speed (r/min) |
振幅 Amplitude (mm) |
功率 Power (kw) |
質量 Mass (kg) |
外形尺寸（長×寬×高）mm Boundary dimension (L × W × H) mm |
|
TDXZ100×36 |
1430 |
0.8~3.2 |
0.37 |
220 |
1590×1090×510 |
|
TDXZ130×50 |
1430 |
0.8~3.2 |
0.37 |
300 |
1890×1390×550 |
|
TDXZ160×36 |
1430 |
0.8~3.2 |
0.55 |
400 |
2190×1690×600 |
|
TDXZ200×50 |
1430 |
0.8~3.2 |
0.75×2 |
550 |
2890×2090×650 |
|
TDXZ250×50 |
1430 |
0.8~3.2 |
1.1×2 |
840 |
3390×2590×760 |
