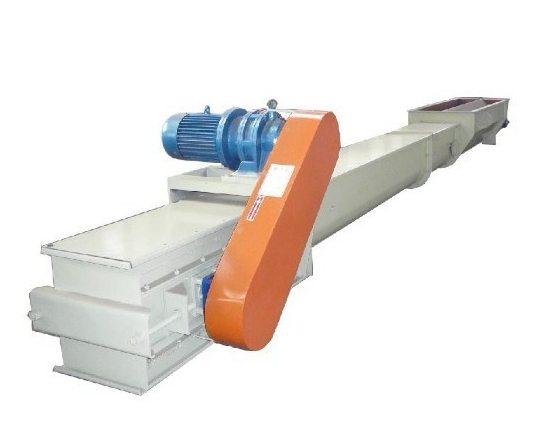

該機是輸送粉塵狀、小顆粒及小塊狀等物料的連續運輸設備，可以水平、傾斜輸送，輸送物料時，刮板輸送機刮板鏈條全埋在物料之中。刮板輸送機具有結構簡單，使用可靠，造價低廉，輸送距離長，并能輸送灼熱物料等優點，此刮板輸送機廣泛應用于糧食、建材、化工、冶金、煤炭、礦山、機械等部門。
Scraper conveyer is a kind of continuous conveying equipment for conveying of powdery, granular & small-piece materials, with both horizontal conveying and inclined conveying allowed. During material conveying, its scraper chains are completely buried in materials. It is featured with simple structure, reliable operation, low cost and long conveying distance, and it can also convey hot materials; therefore, it is widely used in grain, construction materials, chemical engineering, metallurgy, coal, mining, machinery and other industries.
特點：
Characteristics:
1、吸收當今國際上 的元素設計制作而成，其大特點是產量高、殘留少、耐用堅固
It is designed as per the most advanced elements in the world, mainly featured with large output, little residuals and durable performance
2、可水平或小于15°的傾角輸送，可靈活實現多點進料、多點出料的工藝需求
Horizontal conveying and inclined conveying with an angle of less than 15° are allowed; besides, multiple feeding & discharge can be achieved
3、適用于面粉廠、糧庫、油廠、港口、化工廠等顆粒和粉狀物料的輸送
It can be used in flour mill, grain depot, oil plant, port and chemical plant for conveying of granular & powdery materials
技術參數：
Technical parameters:
|
型號 Model |
產量（t/h） Output (t/h) |
槽寬 Slot width (mm) |
鏈條線速度 Chain line speed |
|
TGSS16 |
10- 25 |
160 |
0.16- 0.32 |
|
TGSS20 |
12- 40 |
200 |
0.16- 0.32 |
|
TGSS25 |
20-50 |
250 |
0.16- 0.32 |
|
TGSS32 |
45- 85 |
320 |
0.2- 0.32 |
|
TGSS40 |
65- 120 |
400 |
0.2- 0.32 |
