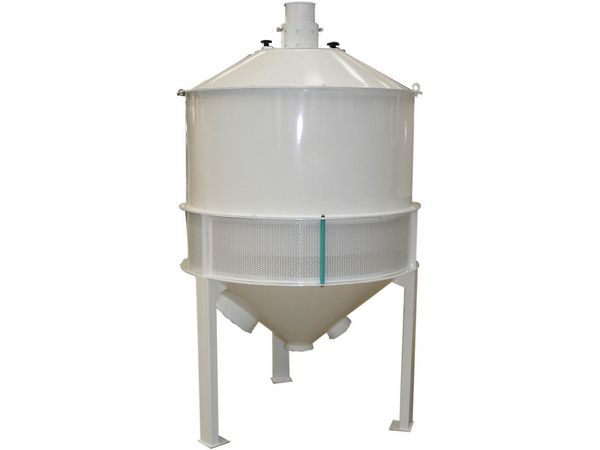

TXFL series air-suction separator
author： time：2019-11-29
Explain:
This type of equipment is specially used to separate husks, dust and other small impurities from grains (such as wheat, corns, rice, oil-bearing crops, etc.). It can be widely used in grain depot, flour mill, rice mill, corn processing plant, oil plant, alcohol plant, etc. It is a kind of equipment which can perfectly solve the problem of flour mill - high ash content.
Characteristics:
1.The air suction area is large, and wind power can be saved;
2.Winnowing effect is satisfactory;
3.It is unpowered, and the later operating cost is low;
Technical parameters:
| Spec. & model | Handling capacity (t/h) | Air suction amount (m³/h) | Mass (kg) | Boundary dimension (L × W × H) | ||
| Pre-cleaning | Cleaning | Pre-cleaning | Cleaning | |||
| TXFL80 | 50 | 12 | 3000 | 2800 | 230 | 860×2100 |
| TXFL100 | 65 | 16 | 3800 | 3500 | 360 | 1060×2150 |
| TXFL120 | 83 | 20 | 4500 | 4100 | 400 | 1260×2200 |
| TXFL150 | 100 | 25 | 5600 | 5200 | 530 | 1560×2600 |
